Professional cob led downlight 6w 10w 15w 20w 30w 40w 50w with IES/DIALUX file

Place of Origin : china

Brand Name : EWIN

Certification : CE ROHS

Model Number : EW-DL-45W-COB

Light Source : LED

Item Type : Downlights

LED Light Source : LED

Warranty(Years) : 3

Input Voltage(V) : AC100-240V 50/60Hz

Lamp Power(W) : 40

Lamp Luminous Flux(lm) : 3800-4500lm.

Lamp Luminous Efficiency(lm/w) : 95

CRI (Ra>) : 80

Color Temperature(CCT) : white, warm white, cold white,red,green,blue,yellow

Working Temperature(℃) : -20 - 50

Working Lifetime(Hour) : 50000

watts : 3W-50W are available

Lamp Body Material : Aluminum

IP Rating : IP44

MOQ : 100pcs

Price : 20-72.3

Packaging Details : standard export package suitable for long-distance transportation

Delivery Time : usually 7-10 working days

Payment Terms : T/T, Western Union

Supply Ability : 5000PCS/Month

Contact Now

Professional cob led downlight 6w 10w 15w 20w 30w 40w 50w with IES/DIALUX file, fast factory delivery

Products Features of cob led downlight:
(1)LED Power: 45W.
(2)Lamp Consumption:52W.
(3)Output: 3600-4000lm.
(4)Input voltage:100-277v AC, 50-60hz
(5)Beam Angle:30°/60°
(6)CRI:> 80.
(7)Working Temperature:-40℃-45℃.
(8)Storage Temperature: -25℃-65℃.
(9)Color of housing: white, black, silver.
(10)Life span: 50,000+hrs.
(11)Certificate: CE/RoHS/SASO
(12)Warranty: 3 years.

COB Parameter:
(1)PCB: Aluminum.
(2)Chip Brand: Epiled 24*24.
(3)Output: 3800-4500lm.
(4)Chip Qty: 264 pcs.
(5)CRI> 82.
(6)Voltage:36-40vDC
(7)Current: 1300-1500mA.

Driver Parameter:
(1)Brand: Lifud (LED Friend).
(2)Input:100-277v AC.
(3)Output: 35-45vDC, 1400mA.
(4)Power effect: 0.9-0.97.
(5)Power Efficiency: 85%
(6)Certificate:CE/TUV/UL/CQC/SAA

Dimmable: Triac or Dali is available.
Meanwell PLD-25-350 is optional.

Product Datasheet:

Part No.	Color	CCT	Output
EW-CL-COB-45W-WW	warm white	2900-3200k	3600-3800lm
EW-CL-COB-45W-NW	natural white	4000-4500k	3700-3900lm
EW-CL-COB-45W-CW	cool white	5900-6300k	3800-4000lm

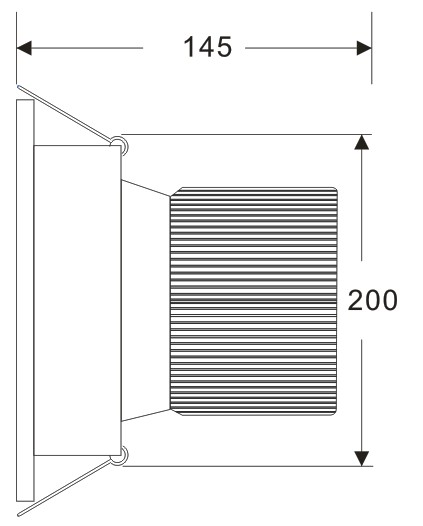

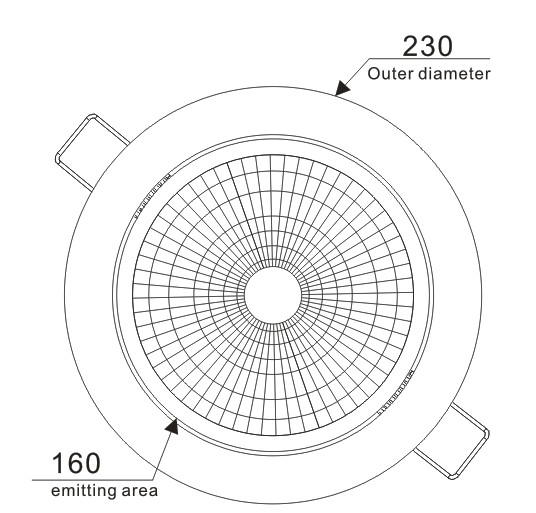

Dimension:
Professional cob led downlight 6w 10w 15w 20w 30w 40w 50w with IES/DIALUX file

Professional cob led downlight 6w 10w 15w 20w 30w 40w 50w with IES/DIALUX file

IES Test:(please contact us to get the IES file)

Packing:
Professional cob led downlight 6w 10w 15w 20w 30w 40w 50w with IES/DIALUX file

More Pictures:
Professional cob led downlight 6w 10w 15w 20w 30w 40w 50w with IES/DIALUX file

Wholesale Professional cob led downlight 6w 10w 15w 20w 30w 40w 50w with IES/DIALUX file from china suppliers

Professional cob led downlight 6w 10w 15w 20w 30w 40w 50w with IES/DIALUX file Images
